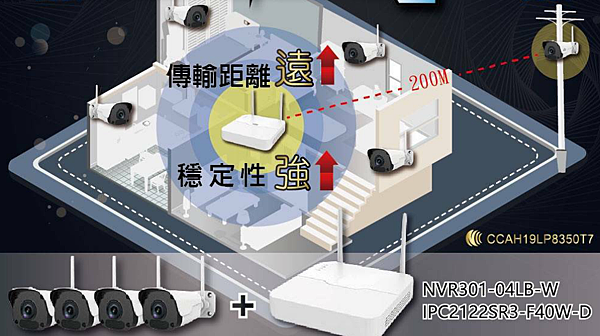

宇視WI-FI NVR套裝
(KIT/NR301-04LB-W/4*2122SR3-F40W-D)
EZView 帳號::admin 密碼:123456
內容物:

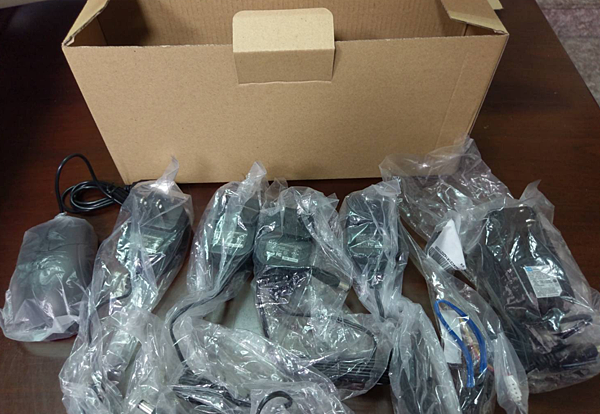

一顆12V2A電源
四顆12V1A電源
一條SATA線及一條SATA電源線
滑鼠x1

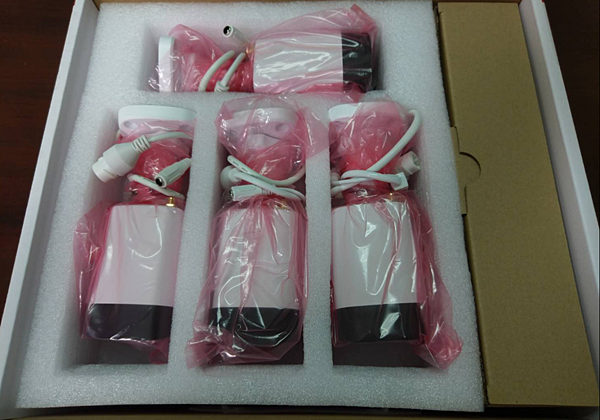

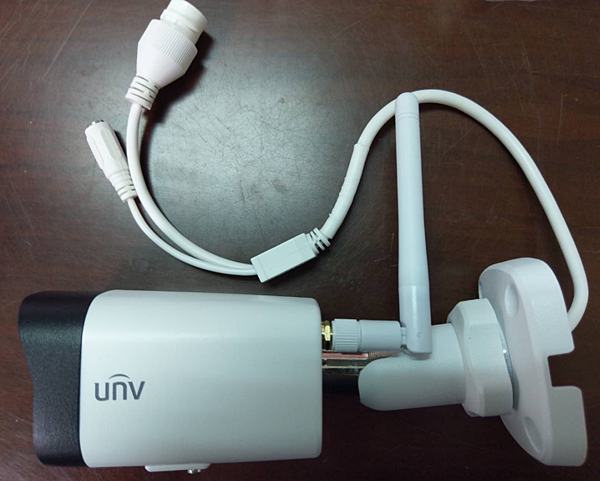

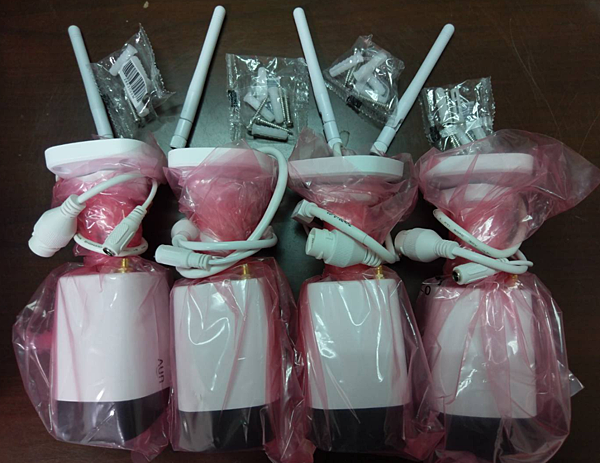

四支WI-FI攝影機

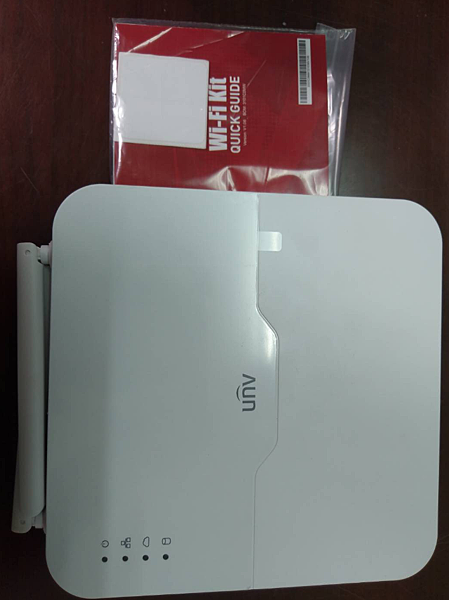

NVR及簡易說明書

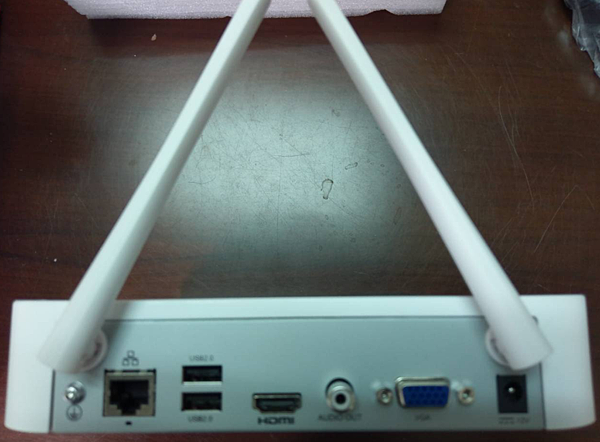

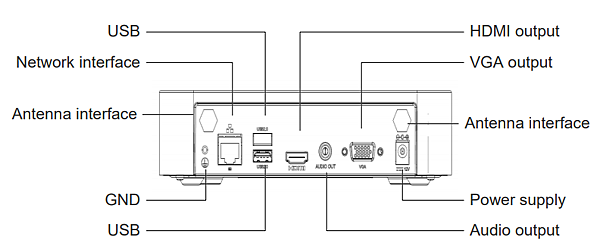

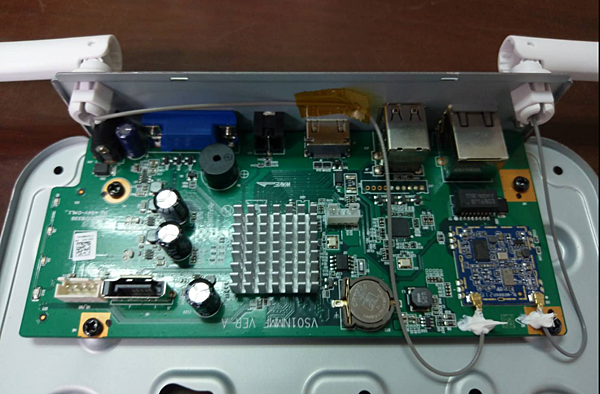

I/O介面:

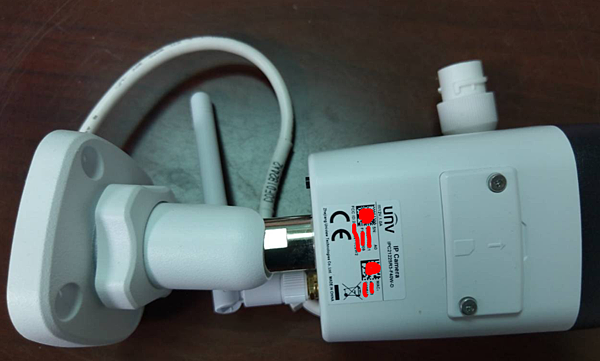

WI-FI攝影機:
可以裝micro sd卡

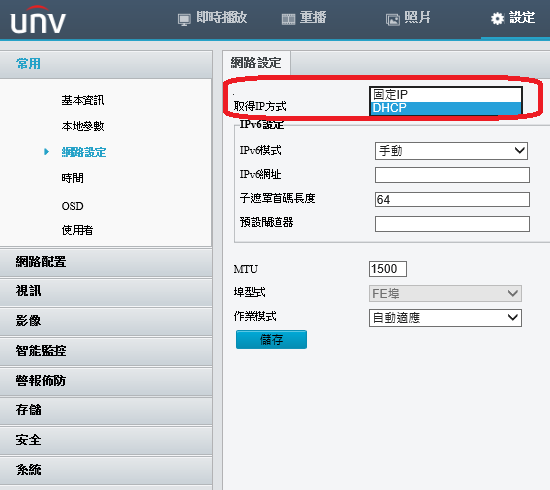

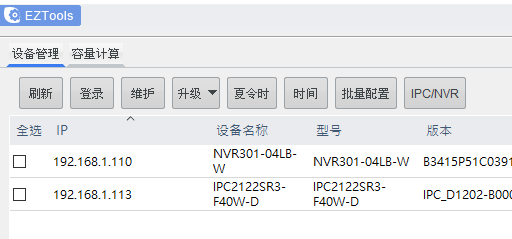

攝影機有固定IP和DHCP模式:
PPPoE模式:

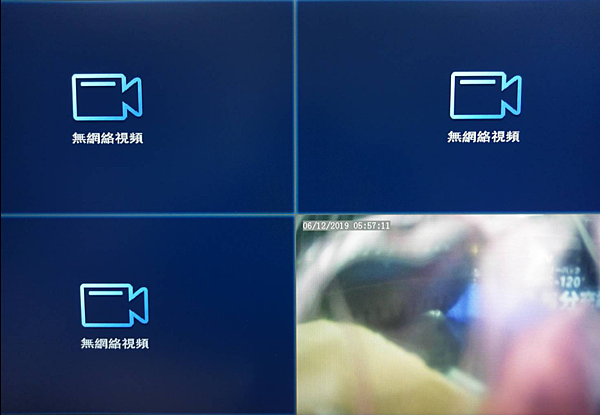

主機通電後,WI-FI攝影機即自動抓取訊號,不用設定

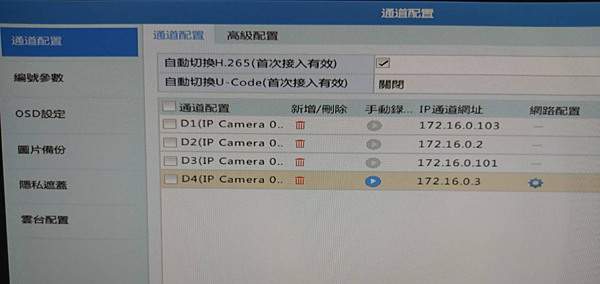

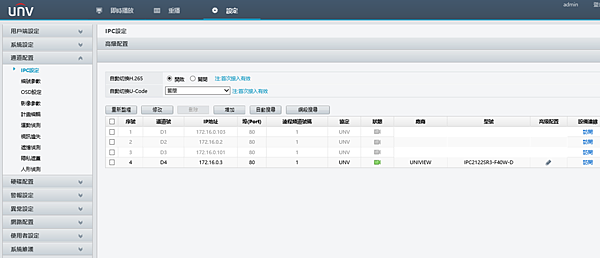

四台攝影機各自對應自已的頻道,(出廠已設定好了)

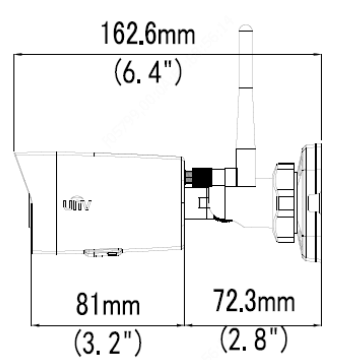

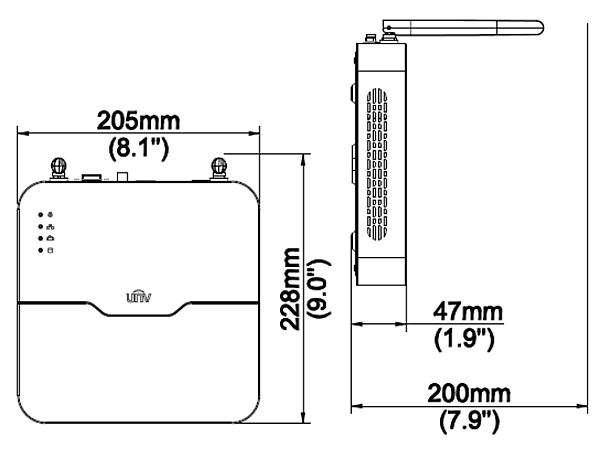

設備尺寸:

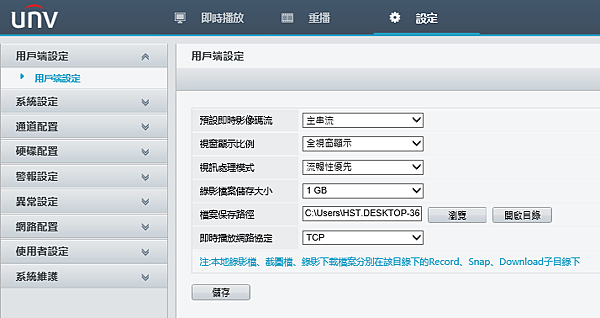

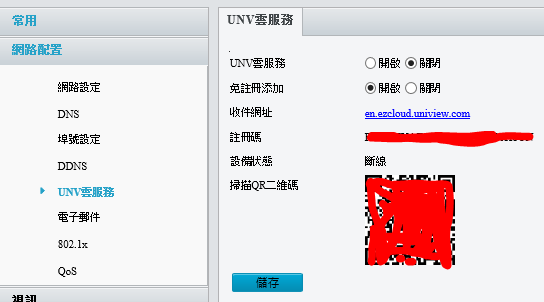

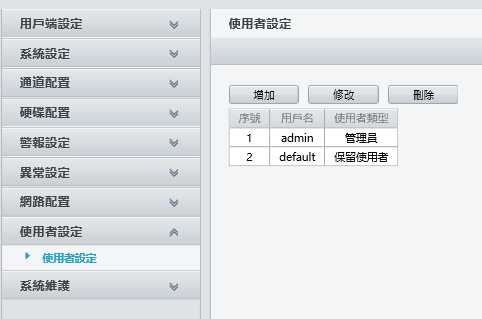

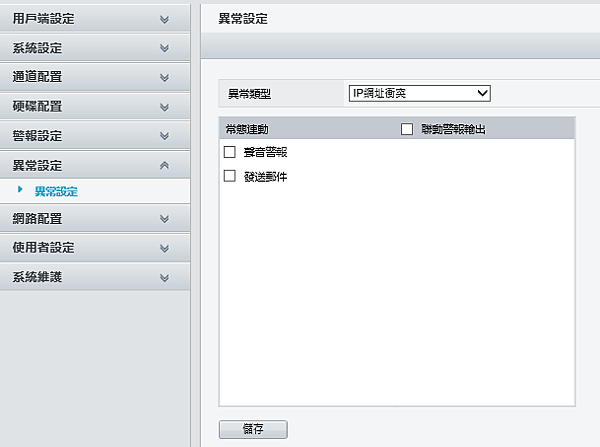

NVR遠端介面:

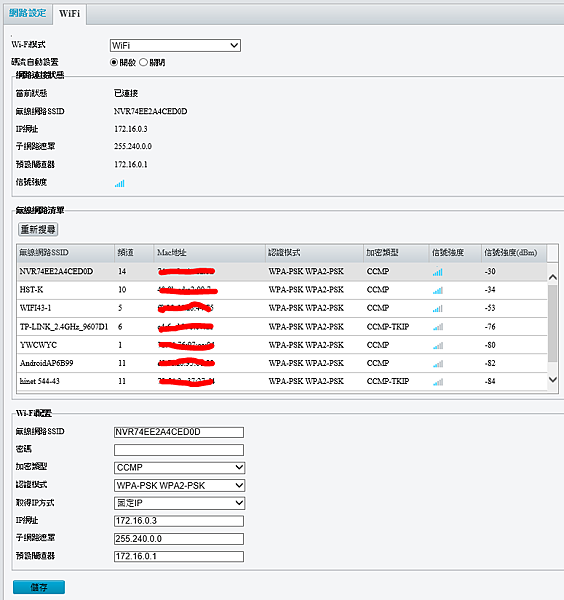

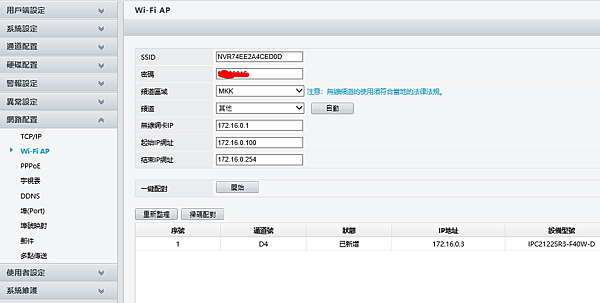

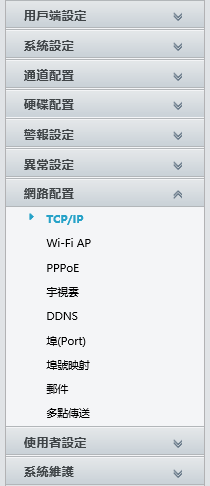

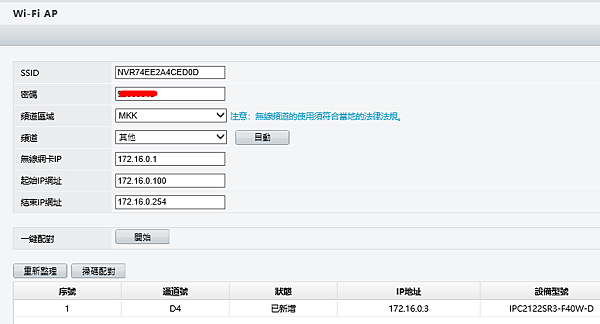

WI-FI設定介面:

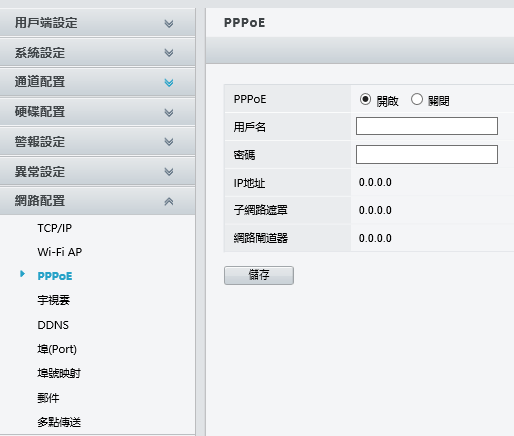

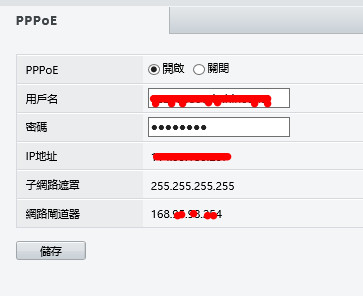

NVR設備的PPPOE設定介面:
WI-FI IPCAM WEB設定頁面:
WI-FI IPCAM支援P2P連接
註:
wifi-kit裡的NVR ap的信號只有wifi cam能抓到。
放大器會橋接不了,
不過這個套裝自身帶橋接功能
可以NVR——IPC——IPC這樣連接
NVR301-04LB-W
具有高性能和高穩定性的嵌入式WiFi模塊
支持CCMP加密和WPA2-PSK身份驗證,
支持可訪問WiFi的IP攝像機
支持Ultra 265 / H.265 / H.264視頻格式
4通道輸入
符合ONVIF要求的第三方IP攝像機:
配置文件S,配置文件G,配置文件T
支持1通道HDMI,1通道VGA
提供HDMI和VGA同步輸出
高達1080p分辨率的錄製
1個SATA硬盤,每個硬盤最多10TB
ANR技術可在網絡斷開時提高存儲可靠性
支持雲端升級
IPC2122SR3-F40W-D
日/夜功能
智能紅外,紅外距離最遠30 m(98 ft)
透光率更高的光學玻璃窗
紅外減反射窗,提高紅外透射率
2D / 3D DNR(數字降噪)
Ultra 265,H.265,H.264,MJPEG
嵌入式智能算法
三重流
9:16走廊格式
ONVIF符合性
寬溫度範圍:-30°C〜+ 55°C(-22°F〜131°F)
±25%的寬電壓範圍
IP66
Model | NVR301-04LB-W | |||||||
Video/Audio Input | ||||||||
IP Video Input | 4-ch | |||||||
Network | ||||||||
Incoming Bandwidth | 40Mbps | |||||||
Outgoing Bandwidth | 40Mbps | |||||||
Remote Users | 128 | |||||||
Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |||||||
Video/Audio Output | ||||||||
HDMI/VGA Output |
HDMI: 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
|||||||
Recording Resolution | 1080p/960p/720p/D1/2CIF/CIF | |||||||
Audio Output | 1-ch, RCA | |||||||
Synchronous Playback | 4-ch | |||||||
Corridor Mode Screen | 3/4 | |||||||
Decoding | ||||||||
Decoding format | Ultra 265/H.265/H.264 | |||||||
Live view/ Playback | 1080p/960p/720p/D1/2CIF/CIF | |||||||
Capability | 4 x 1080P@20, 4 x 720P@30 | |||||||
Hard Disk | ||||||||
SATA | 1 SATA interface | |||||||
Capacity | Up to 10TB for each HDD | |||||||
External Interface | ||||||||
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |||||||
USB Interface | Rear panel:2 x USB2.0 | |||||||
Wi-Fi | ||||||||
Frequency | 2.4GHz | |||||||
Transmission Rate | 150Mbps | |||||||
Wireless Standards | IEEE 802.11b/g/n | |||||||
Wireless Range | 280m(open environment) | |||||||
General | ||||||||
Power Supply | 12V DC Power Consumption: ≤ 9 W( without HDD ) |
|||||||
Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
|||||||
Dimensions(W×D×H) | 205mm ×228mm ×47mm (8.1" × 9.0"×1.9") | |||||||
Weight ( without HDD ) | ≤ 0.98Kg(2.16lb) | |||||||
Model | IPC2122SR3-F40W-D | |||||||
Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS | |||||||
Lens | 4.0mm@F2.0 | |||||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
4mm | 60 | 24 | 12 | 6 | ||||
Angle of view(H) | 86.5° | |||||||
Angle of View (V) | 44.1° | |||||||
Angle of View (O) | 106.4° | |||||||
Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | |||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Minimum Illumination | Colour: 0.02 Lux (F2.0 AGC ON) 0 Lux with IR on |
|||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
S/N | >52dB | |||||||
IR Range | Up to 30m (98 ft) IR range | |||||||
Defog | Digital Defog | |||||||
WDR | DWDR | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 code profile | Baseline profile, Main Profile | |||||||
Frame Rate | Main Stream:2MP (1920×1080): Max. 20 fps; Sub Stream: 720P (1280×720): Max. 20 fps; Third Stream: 4CIF (704×576): Max. 20 fps |
|||||||
9:16 Corridor Mode | Supported | |||||||
HLC | Supported | |||||||
BLC | Supported | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Up to 2 areas | |||||||
Motion Detection | Up to 4 areas | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 256 GB | |||||||
Network Storage | ANR | |||||||
Network | ||||||||
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP |
|||||||
Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API | |||||||
Wi-Fi | ||||||||
Wireless Standards | IEEE802.11b/g/n | |||||||
Frequency Range | 2.4 GHz ~ 2.4835 GHz | |||||||
Channel Bandwidth | 20 MHz Support | |||||||
Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
|||||||
Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | |||||||
Transmit Power | 802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @ 54Mbps 802.11n: 12.5±1.5dBm |
|||||||
Receive Sensitivity | 802.11b: -90dBm @ 11Mbps (Typical) 802.11g: -75dBm @ 54Mpbs (Typical) 802.11n: -74dBm (Typical) |
|||||||
Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps |
|||||||
Interface | ||||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
General | ||||||||
Power | 12 V DC(+/-25%) | |||||||
Power consumption: Max 6.4 W | ||||||||
Dimensions (L × W × H) | 162.6 x 62.4 x 62.7 mm (6.4"x2.5"x2.5") | |||||||
Weight | 0.25 kg (0.55 lb) | |||||||
Working Environment | -30°C ~ +55°C (-22°F ~ 131°F), Humidity ≤ 95% RH(non-condensing) | |||||||
Ingress Protection | IP66 | |||||||
Reset Button | Supported |
