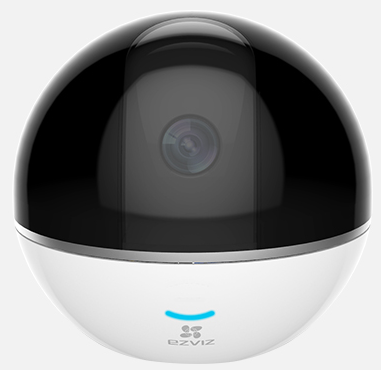

EZVIZ C6TC

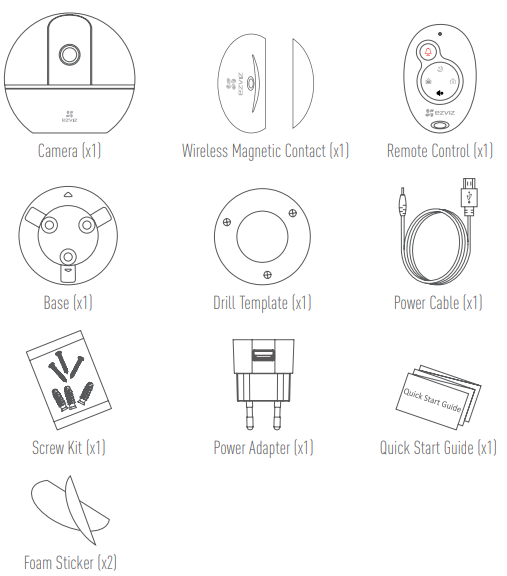

Box Content

Setup

Step 1 Power-on

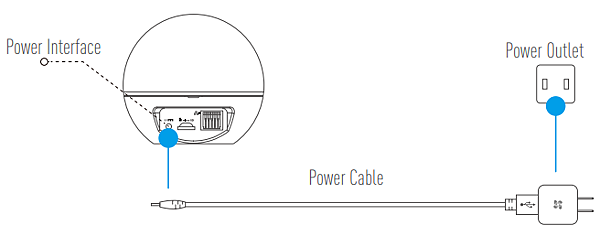

Plug the power cable into the camera, and then plug the power adapter

into an outlet as shown in the figure below

Turn on the camera and let it power up.

The camera will completely rotate side-to-side and tilt up-and-down once

Step 2 Camera Setup

1. Create a user account

- Connect your mobile phone to Wi-Fi using your 2.4GHz network.

- Search for "EZVIZ" in the App Store or Google Play (TM).

- Download and install the EZVIZ app.

- Launch the app.

- Create, and register an EZVIZ user account by following the startup wizard.

2. Adding a camera to EZVIZ

- Log in to your account using the EZVIZ app.

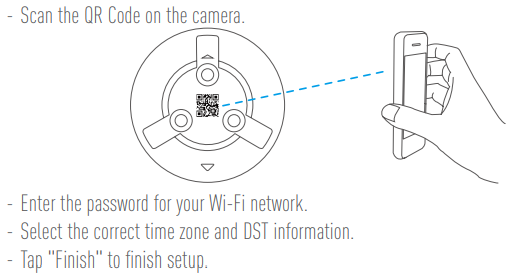

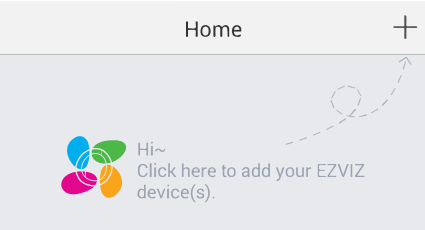

- Tap "+" on the Home page to go to the Scan QR Code interface

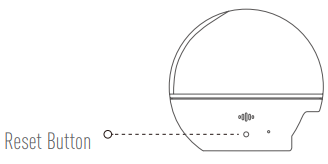

• If the camera fails to connect to your Wi-Fi network, press and

  hold the Reset button for 10s and repeat Step 2.2.

• To select another Wi-Fi network,

   press and hold the Reset button for 10s to reboot the device.

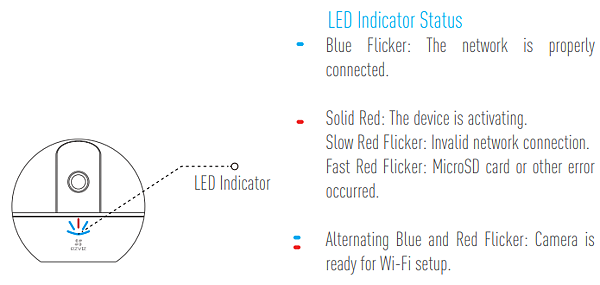

   When the LED indicator flashes red and blue, you can choose a new Wi-Fi network.

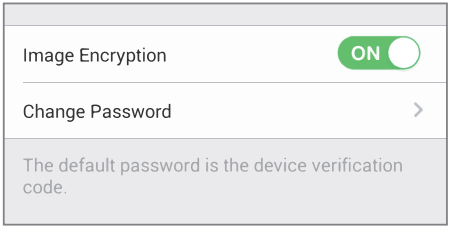

3. (Optional) Enable the Image Encryption After enabling it,

your video and image can be encrypted in transmission.

You can also change the default password.

- Go to the camera settings.

- Tap “Change Password”.

- Tap “Edit”.

- Enter the original verification code located on the label of the camera.

- Enter new password (6 to 12 characters and numbers).

4. Angle Adjustment You can adjust the camera via the EZVIZ app to

get an optimum angle.

The panning angle ranges from 0° to 340°,

and the tilting angle ranges from -10° to 80°.

Step 3Link Wireless Magnetic Contact with Camera via EZVIZ APP

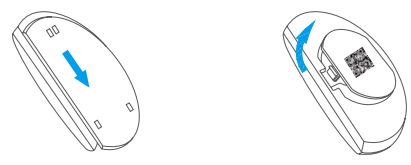

1 Slide the rear cover off from the detector and then open the battery cover, as shown below.

2 Pull out the insulation sheet from the battery slot, and then put the battery cover back

3 Log in the EZVIZ app.

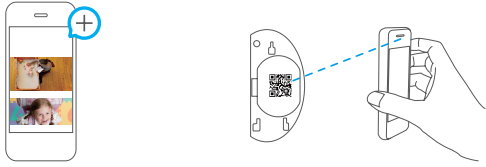

Tap + and scan the QR code of the detector.

Tap Link to link the camera and the detector

4 Put the rear cover back.

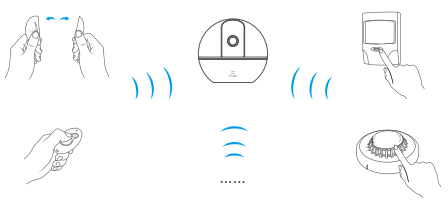

Step 4Link Remote Control or Detectors with Camera

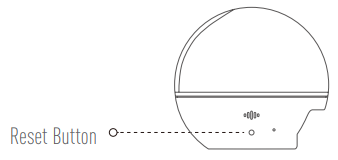

1 Hold down the Reset button for 1 second.

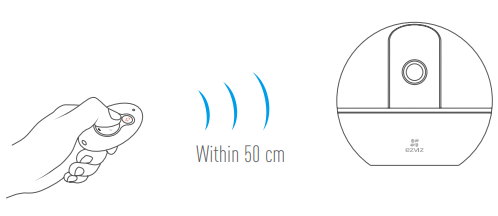

2 When you hear the voice prompt,

take the remote control or other detector close to the camera and

press any button on the remote control

or the detector to send registration signal to the camera.

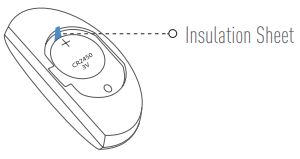

Pull out the insulation sheet from the battery slot before you use the remote control.

You can link more detectors with the camera by following the steps above

3 Press Reset button in the camera for 1 second to exit and finish the operation.

SD Card Management

• Insert a MicroSD card into the slot before mounting.

• MicroSD card not included in the Box Contents.

   Recommended compatibility: Class 10, Max.128GB.

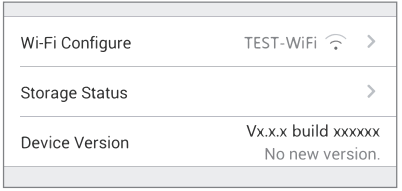

1. In the EZVIZ app, tap the Storage Status

in the Device Settings interface to check the SD card status

2. If the memory card status displays as Uninitialized,

tap to initialize it. The status will then change to Normal and it can store videos and/or pictures

Magnetic Contact Introduction

Basics

Functions

Based on the magnetism, when the distance between main body and

the magnet body exceeds 3 cm,

it sends an alarm signal to the EZVIZ app.

Maintenance

When the battery runs out, a low battery warning will be sent to the EZVIZ account

to remind you to change the battery.

- If you install the main body on the left,

  push the main body upwards and take it off from the rear cover;

  if you install the main body on the right,

  pull the main body downwards and take it off from the rear cover.

- Open the battery cover and then change the battery.

- Install the main body back to the rear cover

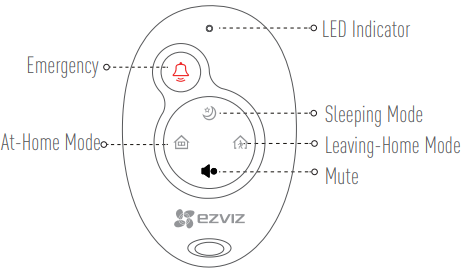

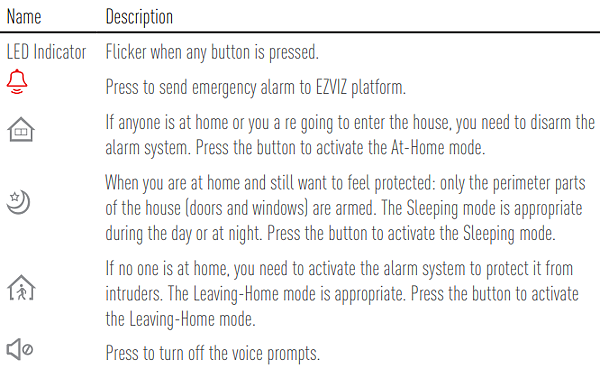

Remote Introduction

The above descriptions for arming mode are the default settings.

You can switch the arming mode in the EZVIZ app.
