Dahua | H.265 Consumer Cameras Introduction

Equipped with the latest H.265 compression, the new consumer Wi-Fi cameras can save you up to 50% bandwidth and storage.

Further more, Intelligent analytics like Human Detection and instant alert keep you aware of what’s happening at home at any time.

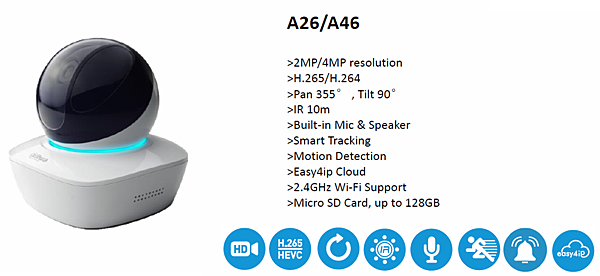

* A Series supports Smart Tracking, do not support Human Detection.

★H.265 (Hardware Base)
•Released in 2013, it’s the latest generation image processor that allows for sophisticated image enhancement and

   dynamically adjusted filtering leading to less noisy pictures, while retaining image detail.

•Low bitrates, reducing the storage cost of recordings by up to 40-50% compared to H.264.

•Industry adoption is in process, end-to-end transition and deployment will take time, resulting in a “future-proof” product.

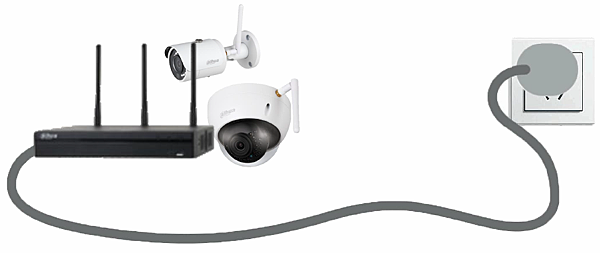

★Plug & Play when working with Dahua Wi-Fi NVR.

★Easy Setup

                        ↓

                        ↓

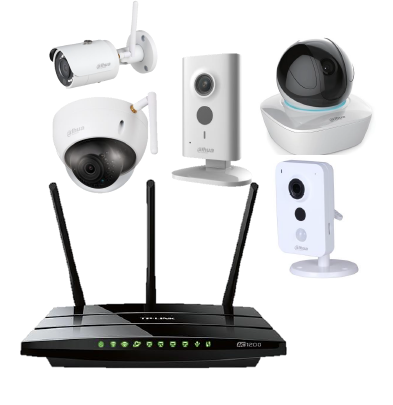

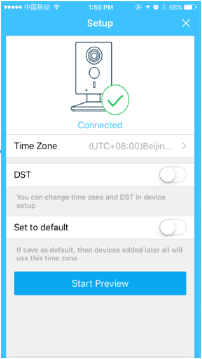

Connect to Wi-Fi Router in minutes:

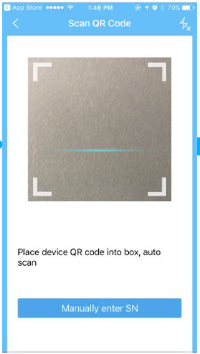

Power on the unit  Run easy4ip app  scan the QR code Succeed

★Two-way Talk

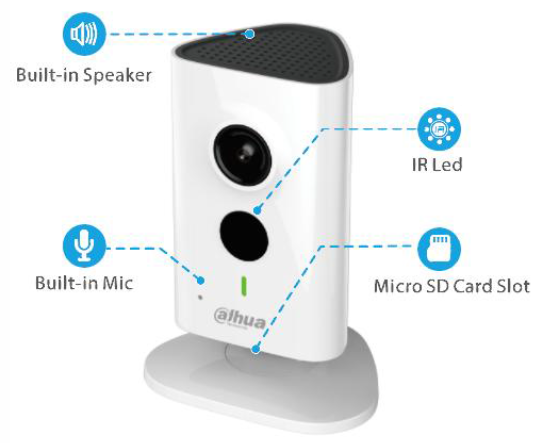

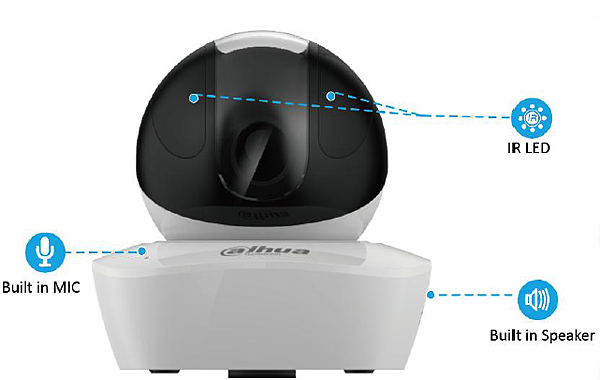

A/C/K Series models support built in Mic and Speaker, let you hear and talk with your family and pets easily.

★Motion Alarm Notification

Human Detection
With powerful image processing technology, the cameras quickly find human target in moving images and send real-time notice to your smartphone,

you can accurately monitor what matters without receiving annoying false alerts.

* A Series models do not support Human Detection

★Not only in daytime, but also in complete darkness, you can get clearly image without details lost.

★Micro SD card local storage(up to 128GB)

★Cloud Storage

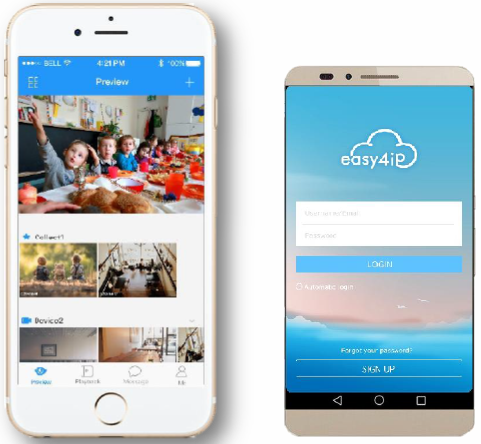

★Multiple APP platforms

•Version: V2.11.000
•System: IOS 7.0 or above;
•Android 3.2 or above
•Updated: Mar.21, 2017

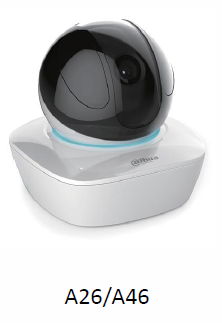

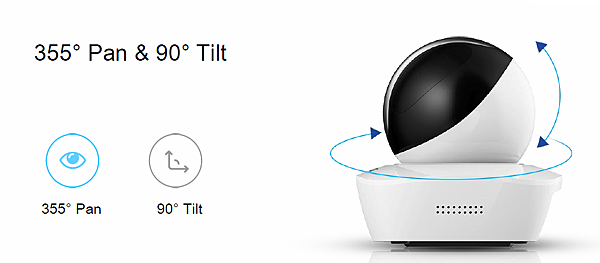

Smart Tracking
Automatically tracking the object when someone/something is moving around the camera.

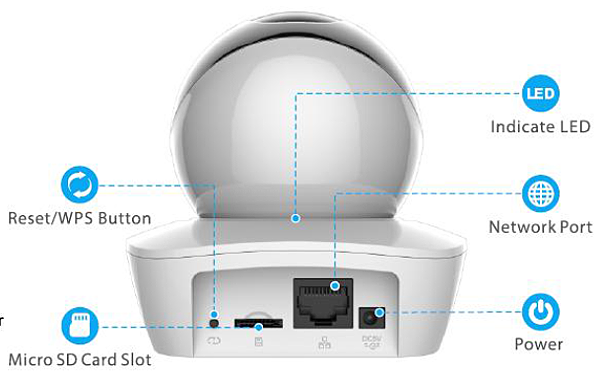

Appearance

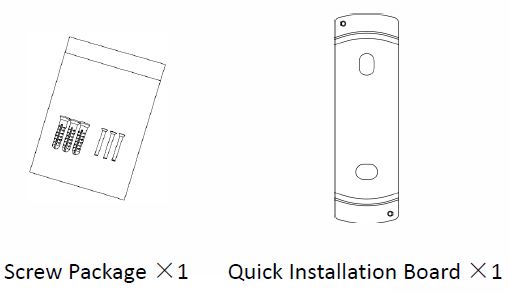

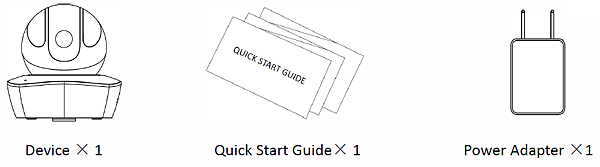

What’s in the box

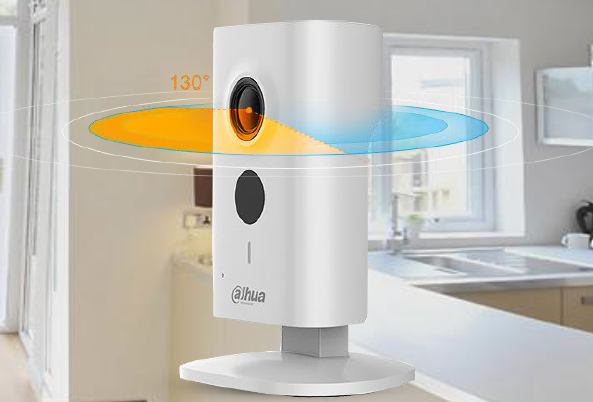

Super Wide View Angle
130°Horizontal, 150°Diagonal

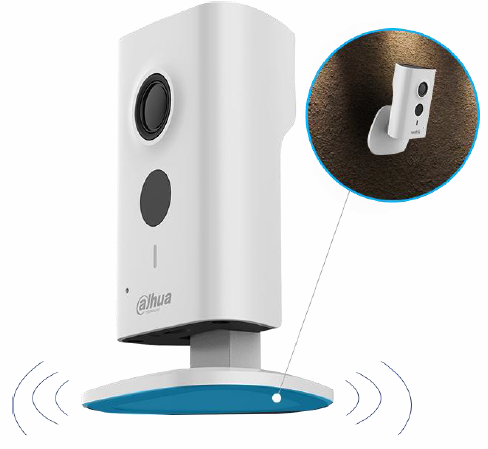

Magnetic Installation

Just stick to any metal surface to install C46/C26.

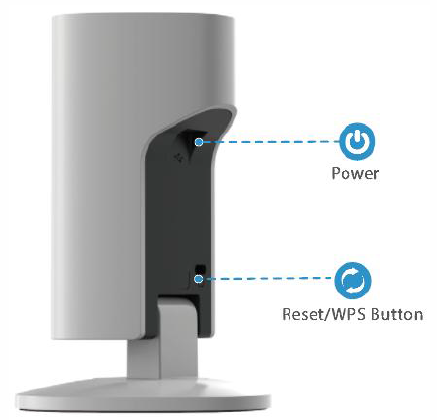

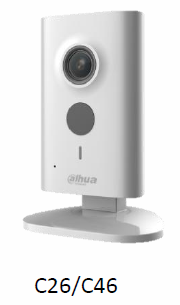

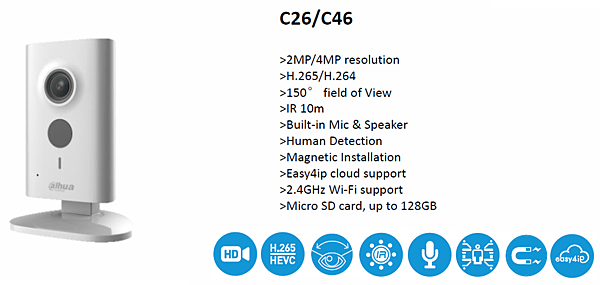

C26/C46——Appearance

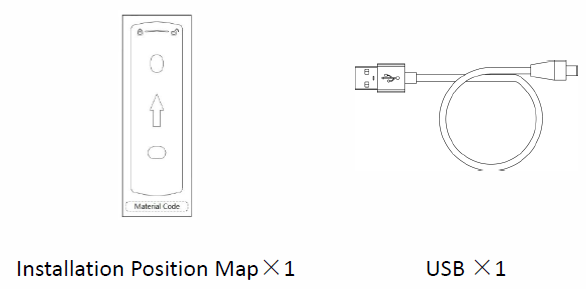

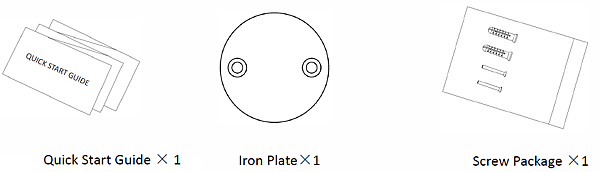

C26/C46—— What’s in the box

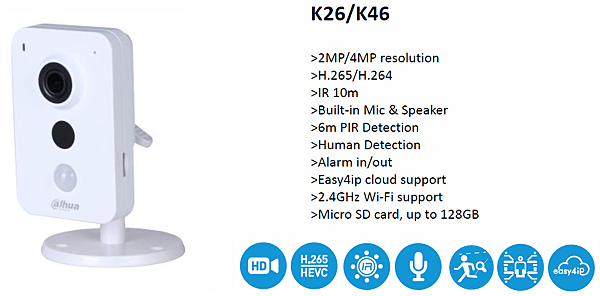

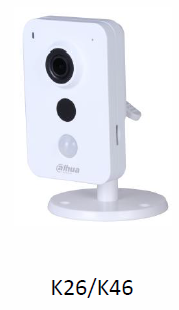

K26/K46——Features

★PIR Detection

you can connect K46/K26 with detectors, sensors, beeper, etc.

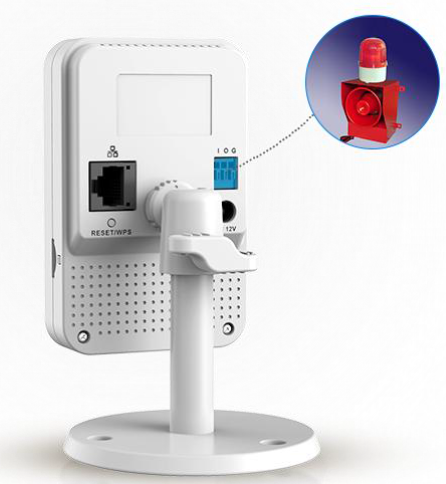

Alarm input/output Interface

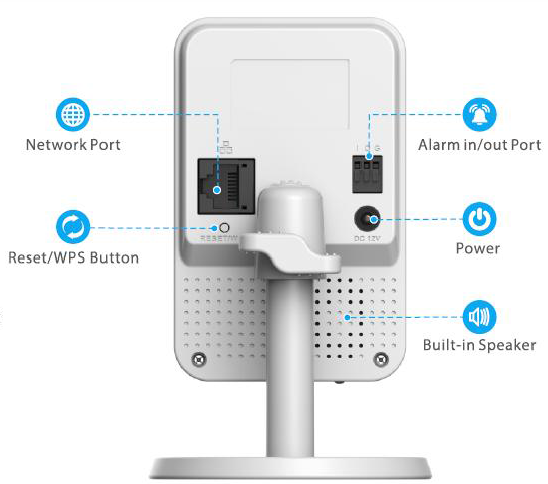

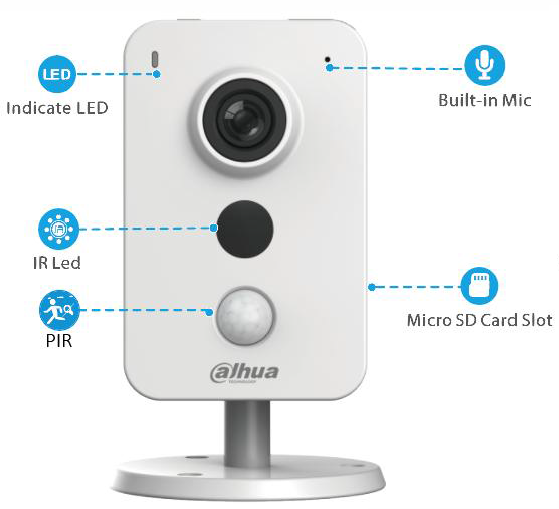

K26/K46——Appearance

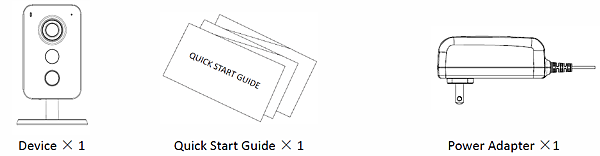

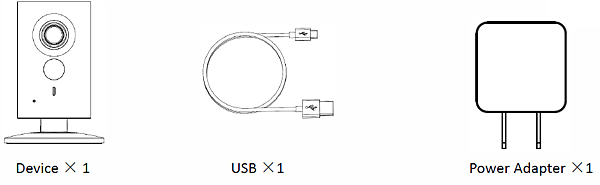

K26/K46——What’s in the box

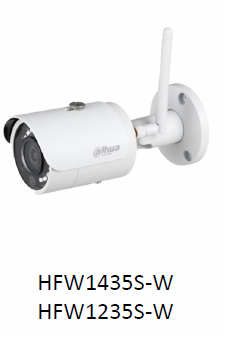

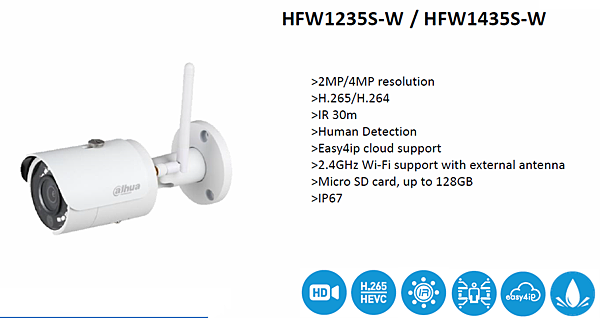

H.265 Bullet Wi-Fi Camera——Features

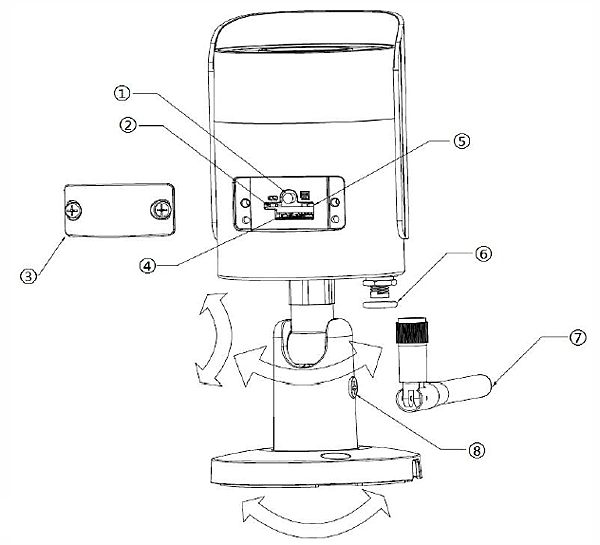

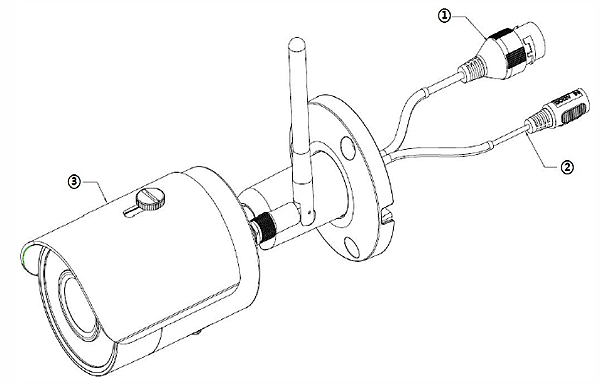

H.265 Bullet Wi-Fi Camera——Appearance

①Ethernet port
②Power port
③Unit device

①Reset/ WPS button
②Indicator light 1
③Lower cover
④Micro SD card slot
⑤Indicator light 2
⑥Waterproof ring
⑦Wi-Fi antenna
⑧Locking screw

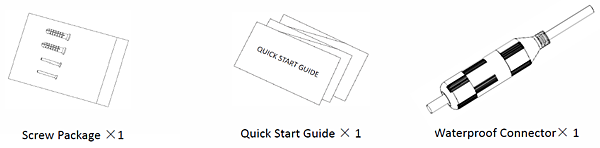

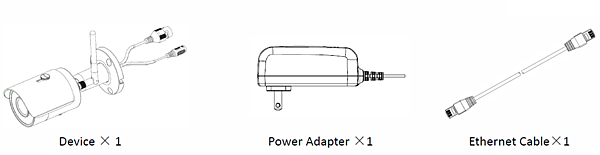

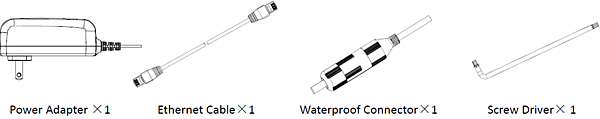

H.265 Bullet Wi-Fi Camera——What’s in the box

Installation

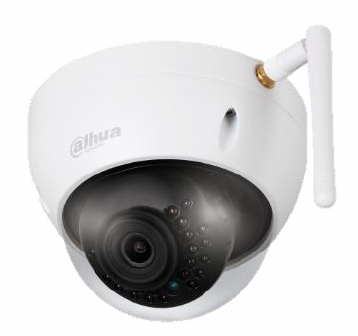

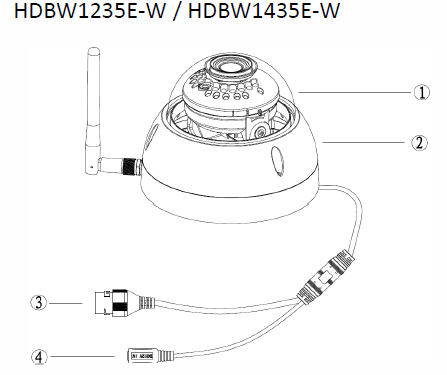

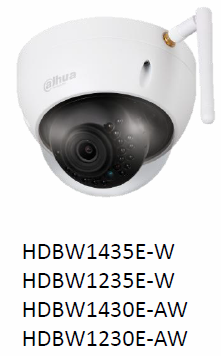

HDBW1235E-W / HDBW1435E-W
HDBW1230E-AW / HDBW1430E-AW

>2MP/4MP resolution

>H.265/H.264 >IR 30m >Human Detection

>Easy4ip cloud support

>2.4GHz Wi-Fi support with external antenna

>Micro SD card, up to 128GB

>IP67, IK10

>PoE (HDBW1430E-AW / HDBW1230E-AW only)

>Audio line in & out (HDBW1430E-AW / HDBW1230E-AW only)

>Alarm line in & out (HDBW1430E-AW / HDBW1230E-AW only

①Dome cover
②Dome enclosure
③Network port
④Power port

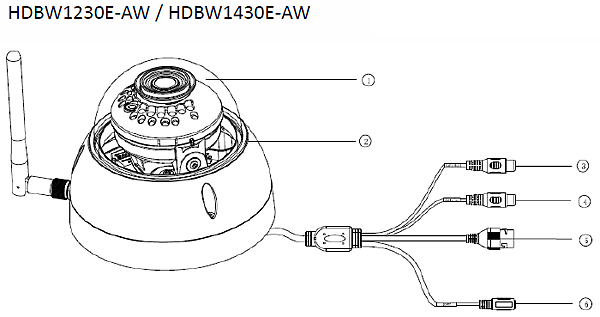

①Dome cover
②Dome enclosure
③Audio out
④Audio in
⑤Network port
⑥Power port

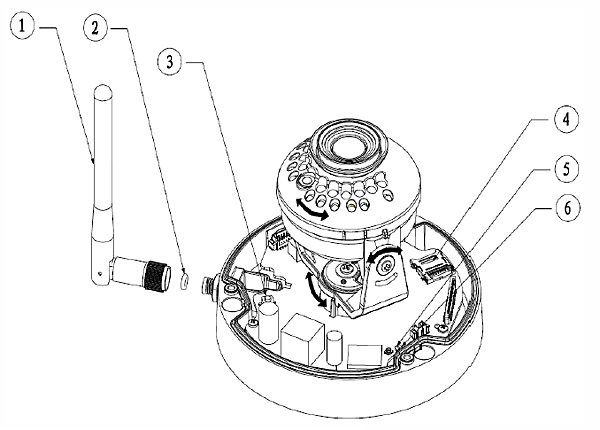

①Wi-Fi antenna
②Waterproof ring
③Reset/ WPS (Wi-Fi Protected Setup) button
④Micro SD card slot
⑤Indicator light 1
⑥Indicator light 2

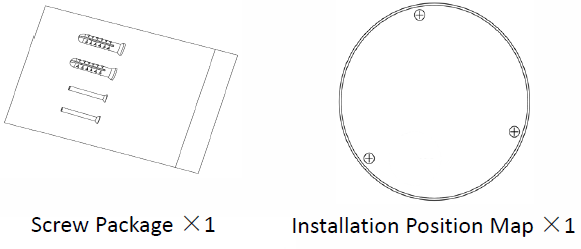

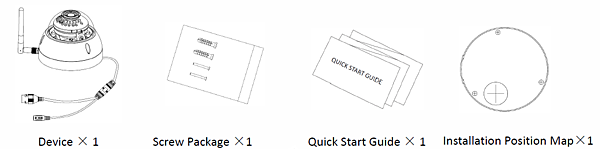

H.265 Dome Wi-Fi Camera——What’s in the box

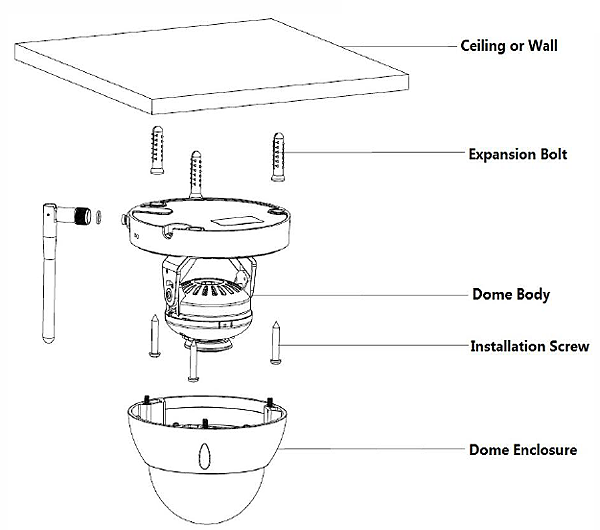

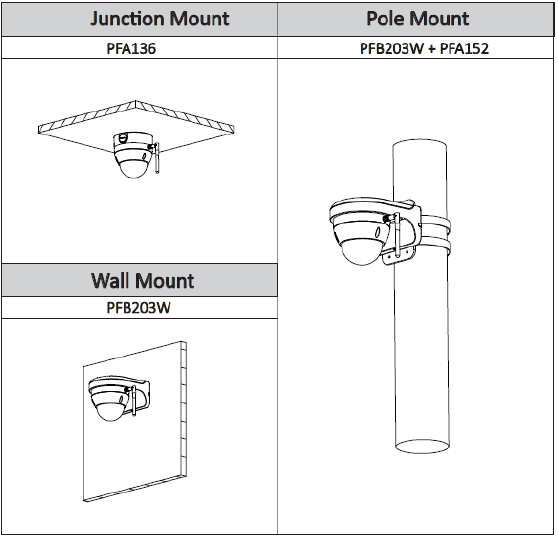

Installation
